Stainless Steel Wire Mesh

Home   »  Products  »  Stainless Steel Wire Mesh

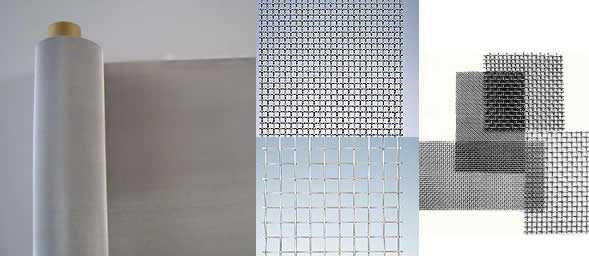

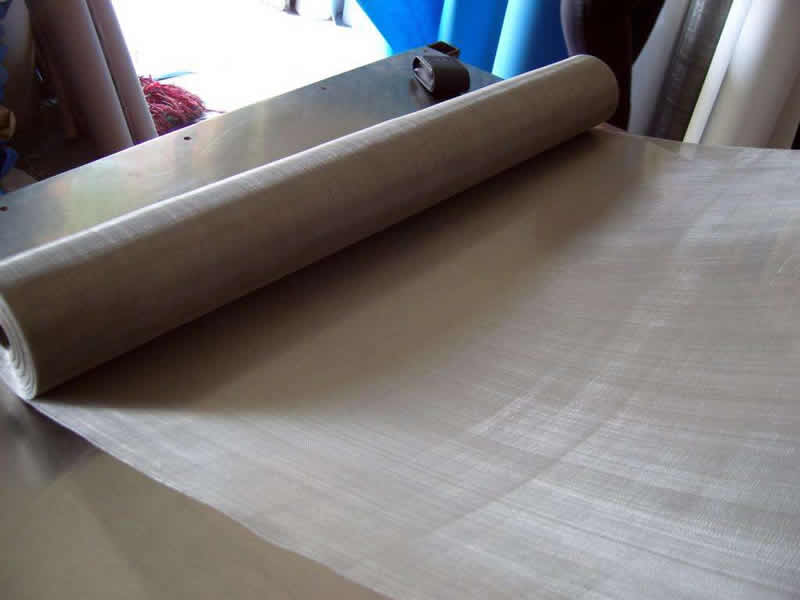

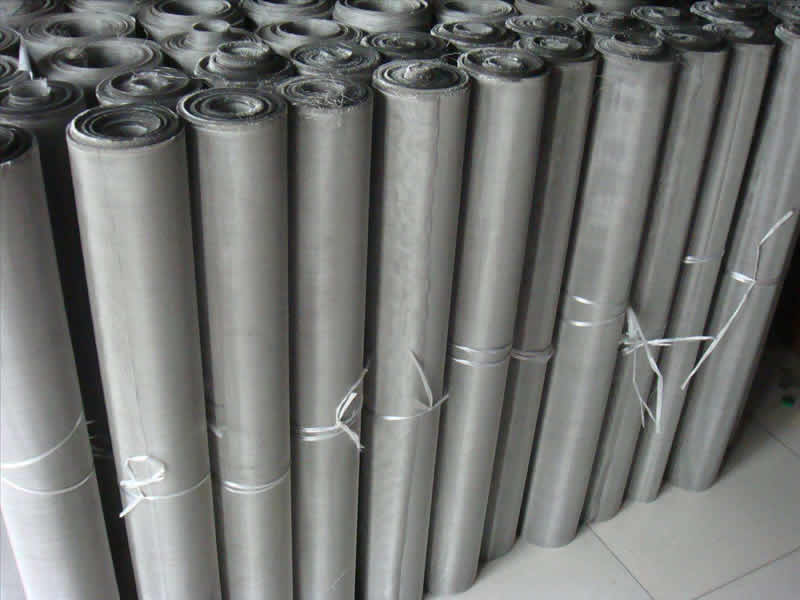

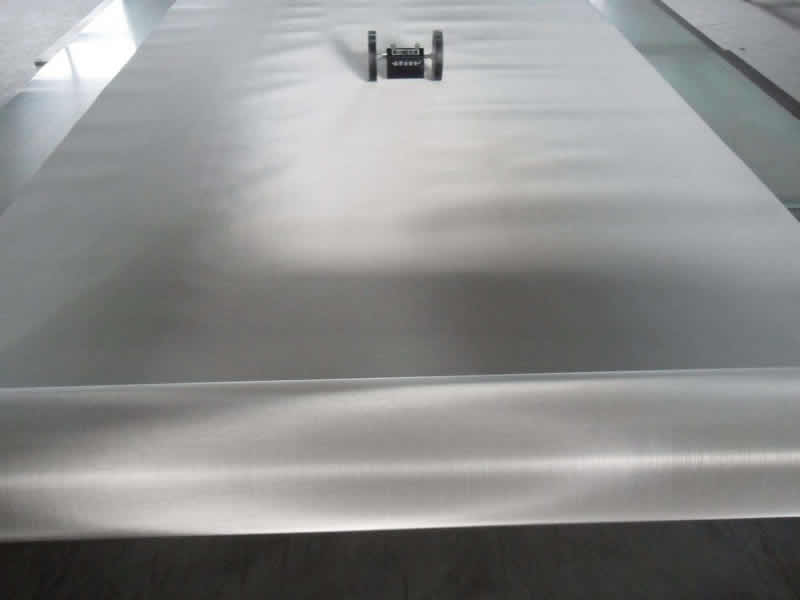

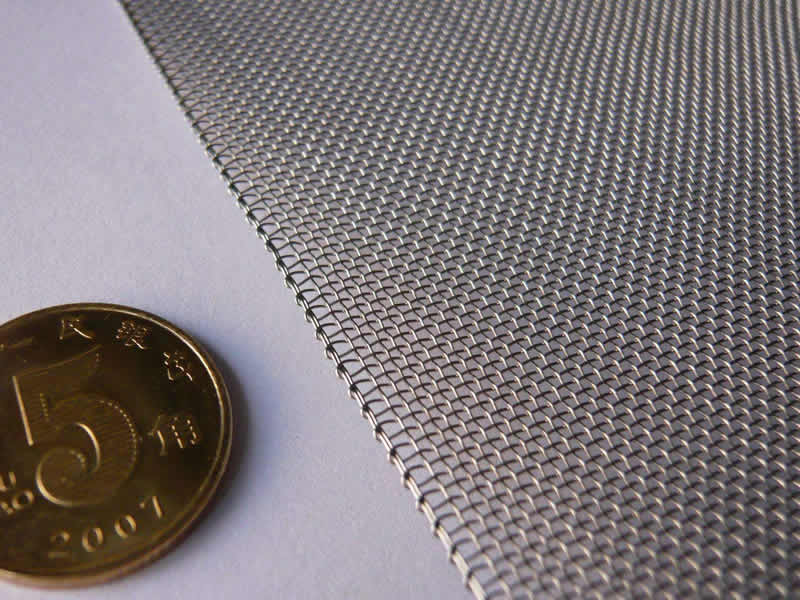

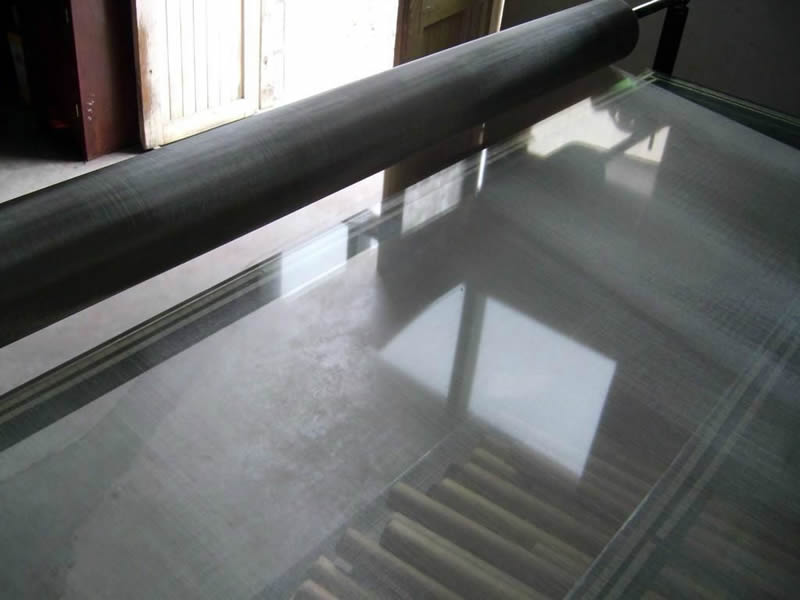

Stainless Steel Wire Mesh

Material: High quality stainless steel wire
Feature: Resistance against acid, alkali, and corrosion
Application: Chemicals, pharmaceuticals, machine making
Send Email

Material: SS202, 304, 304L, 316, 316L

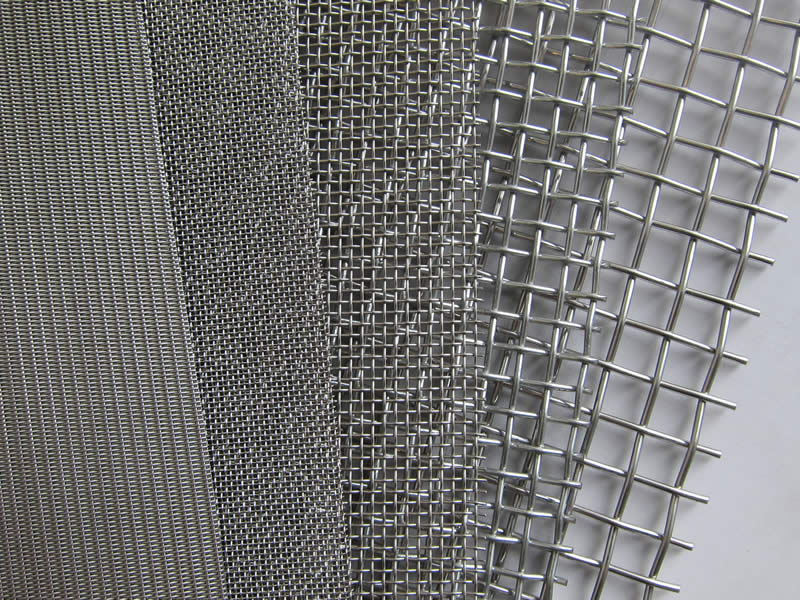

Woven pattern: plain weave, twill weave, Dutch weave, mat type twill weave, double wire dutch weave, five heddle weave.

Application: Use for mining, chemical industry, food industry, pharmacy industry and so on, with the characteristics of wear-resisting, heat-resisting, acid-resisting and corrosion-resisting.

The following specification is for your reference.

Mesh/inch Wire Diameter Aperture Percentage Open Area
inch mm inch mm %
1X1 0.080 2.03 0.920 23.37 84.6
2X2 0.063 1.60 0.437 11.10 76.4
3X3 0.054 1.37 0.279 7.09 70.1
4X4 0.063 1.60 0.187 4.75 56.0
4X4 0.047 1.19 0.203 5.16 65.9
5X5 0.041 1.04 0.159 4.04 63.2
6X6 0.035 0.89 0.132 3.35 62.7
8X8 0.028 0.71 0.097 2.46 60.2
10X10 0.025 0.64 0.075 1.91 56.3
10X10 0.020 0.51 0.080 2.03 64.0
12X12 0.023 0.584 0.060 1.52 51.8
12X12 0.020 0.508 0.063 1.60 57.2
14X14 0.023 0.584 0.048 1.22 45.2
14X14 0.020 0.508 0.051 1.30 51.0
16X16 0.018 0.457 0.0445 1.13 50.7
18X18 0.017 0.432 0.0386 0.98 48.3
20X20 0.020 0.508 0.0300 0.76 36.0
20X20 0.016 0.406 0.0340 0.86 46.2
24X24 0.014 0.356 0.0277 0.70 44.2
30X30 0.013 0.330 0.0203 0.52 37.1
30X30 0.012 0.305 0.0213 0.54 40.8
30X30 0.009 0.229 0.0243 0.62 53.1
35X35 0.011 0.279 0.0176 0.45 37.9
40X40 0.010 0.254 0.0150 0.38 36.0
50X50 0.009 0.229 0.0110 0.28 30.3
50X50 0.008 0.203 0.0120 0.31 36.0
60X60 0.0075 0.191 0.0092 0.23 30.5
60X60 0.007 0.178 0.0097 0.25 33.9
70X70 0.0065 0.165 0.0078 0.20 29.8
80X80 0.0065 0.165 0.0060 0.15 23.0
80X80 0.0055 0.140 0.0070 0.18 31.4
90X90 0.005 0.127 0.0061 0.16 30.1
100X100 0.0045 0.114 0.0055 0.14 30.3
100X100 0.004 0.102 0.0060 0.15 36.0
100X100 0.0035 0.089 0.0065 0.17 42.3
110X110 0.0040 0.1016 0.0051 0.1295 30.7
120X120 0.0037 0.0940 0.0064 0.1168 30.7
150X150 0.0026 0.0660 0.0041 0.1041 37.4
160X160 0.0025 0.0635 0.0038 0.0965 36.4
180X180 0.0023 0.0584 0.0033 0.0838 34.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6
250X250 0.0016 0.0406 0.0024 0.0610 36.0
270X270 0.0016 0.0406 0.0021 0.0533 32.2
300X300 0.0051 0.0381 0.0018 0.0457 29.7
325X325 0.0014 0.0356 0.0017 0.0432 30.0
400X400 0.0010 0.0254 0.0015 0.0370 36.0
500X500 0.0010 0.0254 0.0010 0.0254 25.0
635X635 0.0008 0.0203 0.0008 0.0203 25.0

Mesh and Particle size

Mesh μm   Mesh μm   Mesh μm   Mesh μm
2 8000 24 700 80 180 200 75
3 6700 28 600 90 160 230 62
4 4750 30 550 100 150 240 61
5 4000 32 500 115 125 250 58
6 3350 35 435 120 120 270 53
7 2800 40 380 125 115 300 48
8 2360 42 355 130 113 325 45
10 1700 45 325 140 109 400 38
12 1400 48 300 150 106 500 25
14 1180 50 270 160 96 600 23
16 1000 60 250 170 90
18 880 65 230 175 86
20 830 70 212 180 80
