Dutch Wire Mesh

Material:	High quality stainless steel wire
Feature:	Excellent resistance against acid
Application:	Filtering and Sieving

Send Email

Description

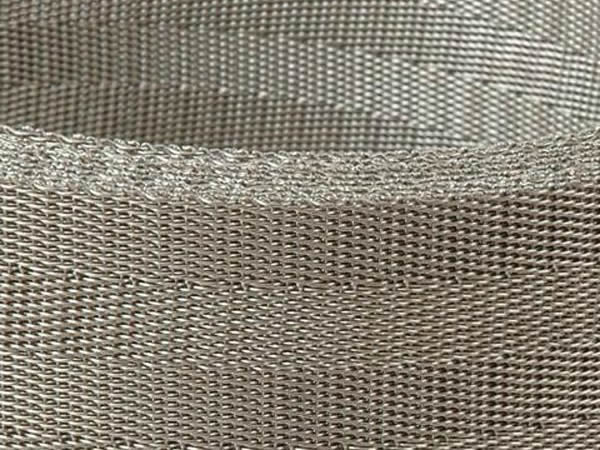

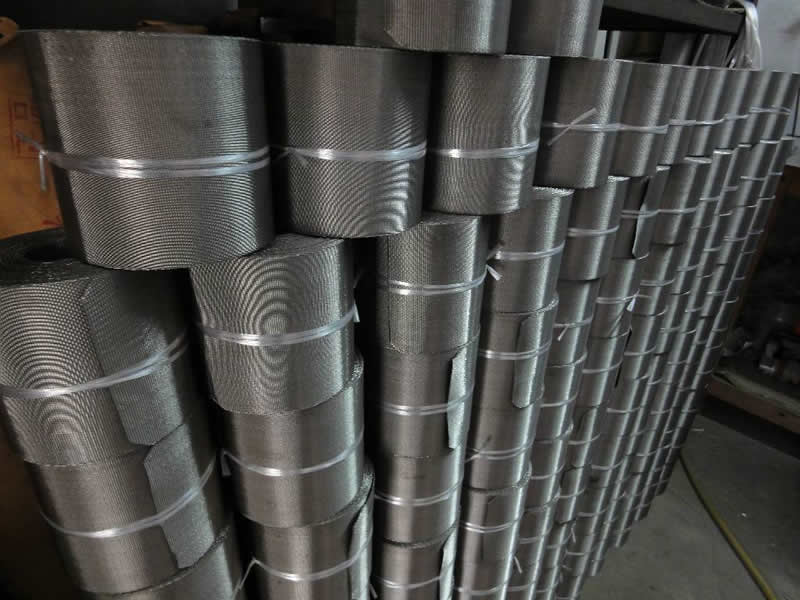

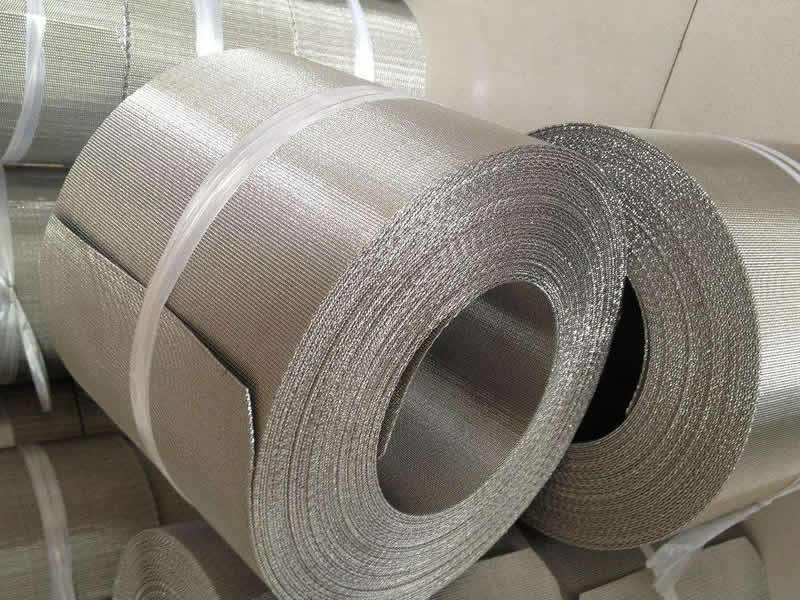

Dutch Mesh, also known as Dense Wire Mesh, is made of high quality stainless steel wire. Great difference between longitude wire diameter and latitude wire diameter is its main characteristics. It has higher filiteration accuracy and longer service life than square wire mesh because it is thicker.

Material: stainless steel wire SS202, 304, 304L, 316, 316L, Iron wire, Brass wire, Nickel wire

Woven pattern: plain weave, twill weave, reverse type

Application: Use as filter fittings for chemical industry, medicine, petroleum, telecom communication, scientific research units and so on, with the characteristics of wear-resisting, heat-resisting, acid-resisting and corrosion-resisting.

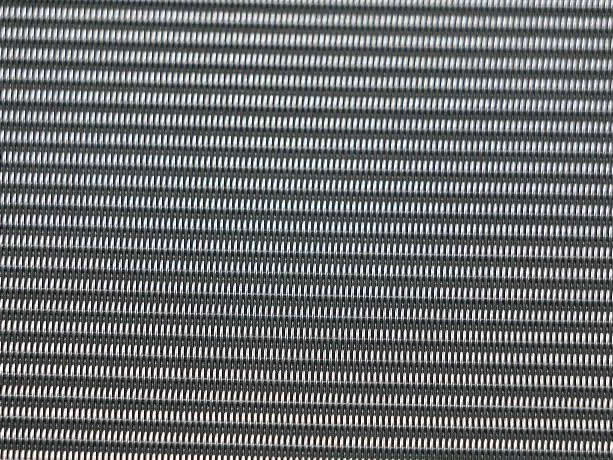

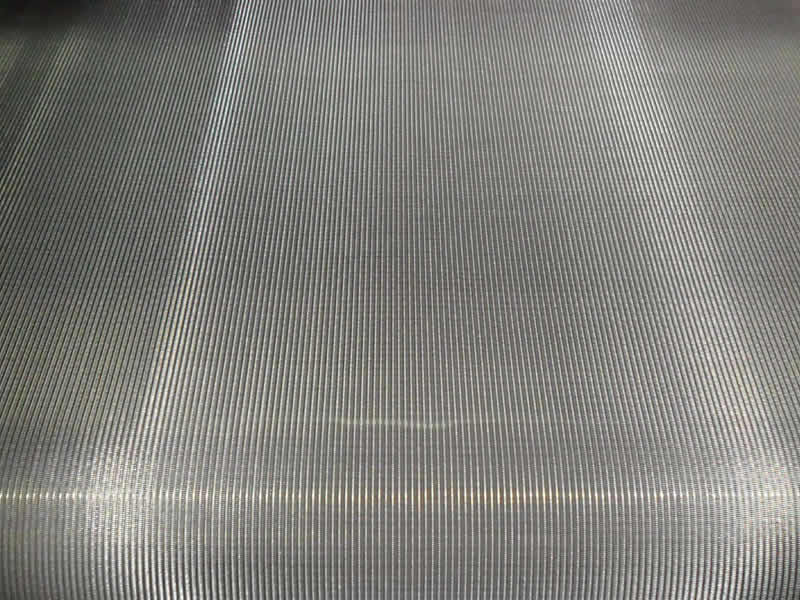

Dutch mesh - Plain weave

Model	Mesh	Wire Diameter（mm）	Through Size (μm）
40	10X64	0.55X0.42	260
50	12X75	0.45X0.35	220
80	24X110	0.35X0.25	160
100	25X140	0.28X0.20	100
120	30X150	0.25X0.18	80
140	35X180	0.20X0.16	70
160	40X200	0.18X0.13	60
180	45X200	0.16X0.12	56
200	50X250	0.15X0.11	50
240	60X300	0.14X0.09	45
260	65X320	0.13X0.08	36
280	70X400	0.125X0.07	34
300	80X700	0.11X0.039	32

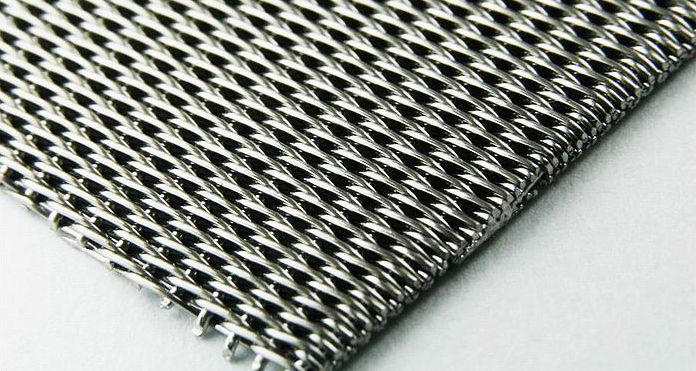

Dutch weave -- Twill weave

Model	Mesh	Wire Diameter（mm）	Through Size (μm）
80II	20X250	0.28X0.20	38
120II	30X300	0.25X0.18	36
200II	50X500	0.14X0.11	34
320I	80X700	0.10X0.17	32
320II	80X780	0.10X0.07	30
360	90X780	0.10X0.07	25
400I	100X780	0.10X0.07	22
400II	100X900	0.10X0.063	20
500	120X1100	0.07X0.05	17
630	165X800	0.063X0.05	10
650	165X1400	0.07X0.04	14
685	180X1800	0.063X0.032	13
795I	200X1400	0.07X0.04	12
795II	200X1800	0.05X0.032	10
850	210X1900	0.045X0.03	10
1000	250X2000	0.045X0.028	8
1125	280X2200	0.036X0.026	7
1200	300X2200	0.036X0.026	6
1280	325X2300	0.035X0.025	5
1600	400X2800	0.03X0.018	3
