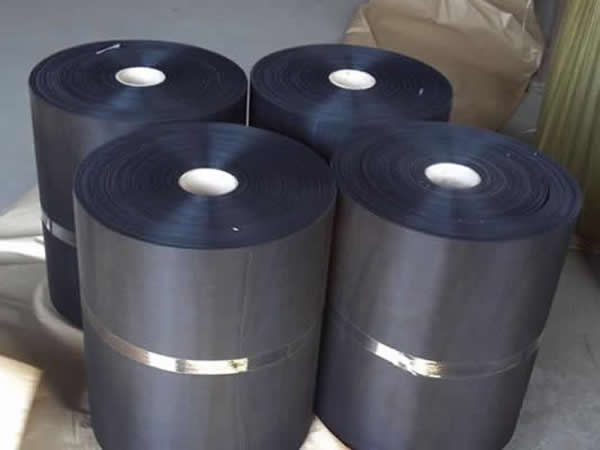

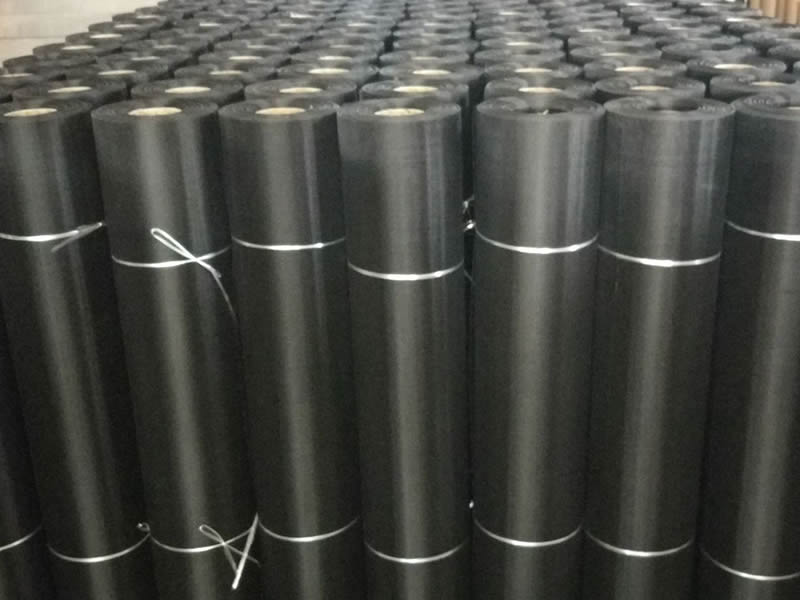

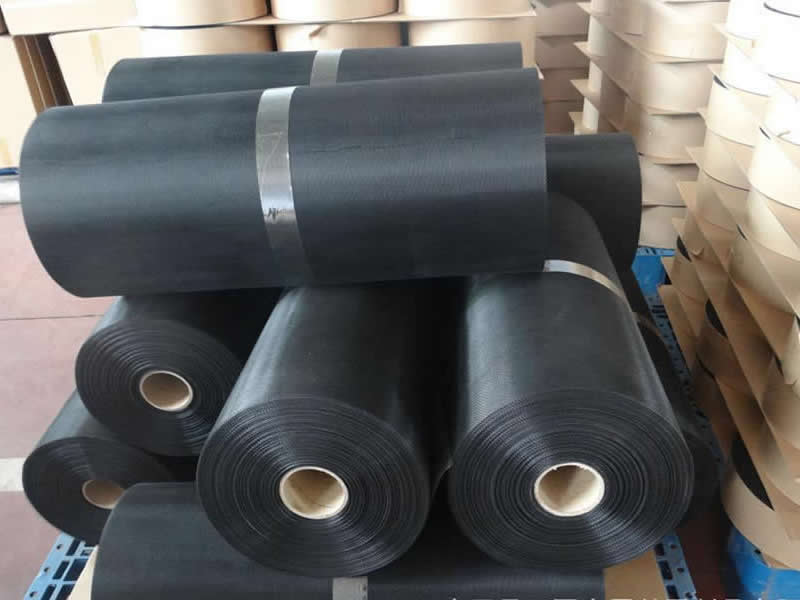

Epoxy Coated Mesh
Epoxy coated wire mesh was made by coating the epoxy power on the surface of the stainless steel mesh or low carbon steel mesh pr aluminum mesh, and was mainly used as a filter parts, some are worked as window screening, we offer varieties of color to choose and general color are white and black color. the size some could be produced according to customer's requirements, the epoxy coated mesh is widely used besides galvanized, pvc coated and enameled.
Material: stainless steel, iron, galvanized and aluminum wire mesh
Surface treatment: spray/epoxy coated
Feature: good toughness,corrosion resistant,high strength,etc
Application: epoxy coated mesh mostly use as window screen because of its good vision and safety protection.
Epoxy coated wire mesh specifications:
| Mesh | Wire Dia. | Width | Length |
| 14 x 14 | BWG 31/32 | 0.6 – 1.5 m | 100- 500 feet |
| 16 x 14 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
| 16 x 16 | BWG 31/32 | 0.6 – 1.5 m | 100- 500 feet |
| 18 x 14 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
| 18 x 16 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
| 18 x 18 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
| 20 x 20 | BWG 32/33 | 0.6 – 1.5 m | 100 – 500 feet |
| 22 x 22 | BWG 32/33 | 0.6 – 1.5 m | 100 – 500 feet |
| 24 x 24 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
| 28 x 28 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
| 30 x 30 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
