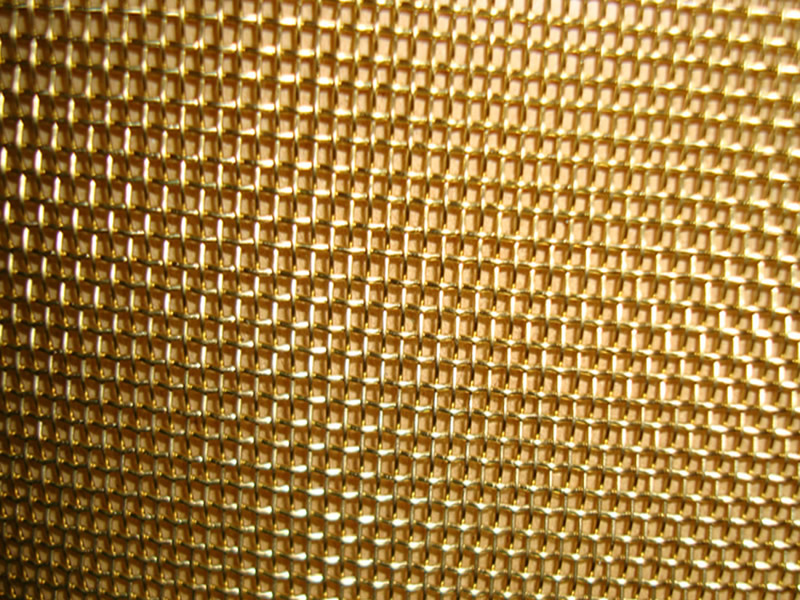

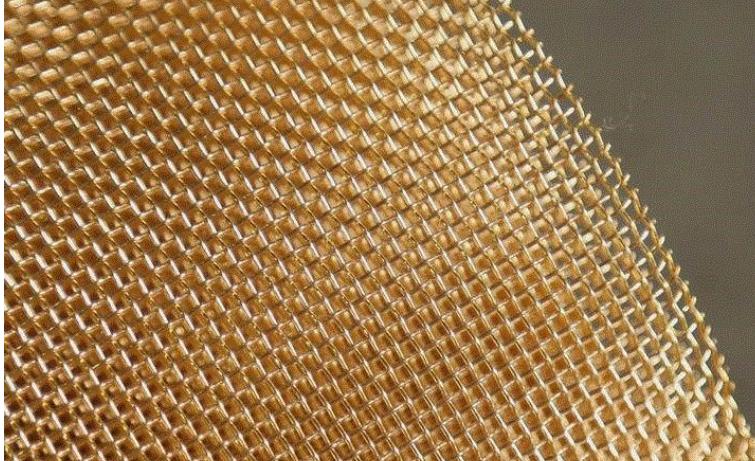

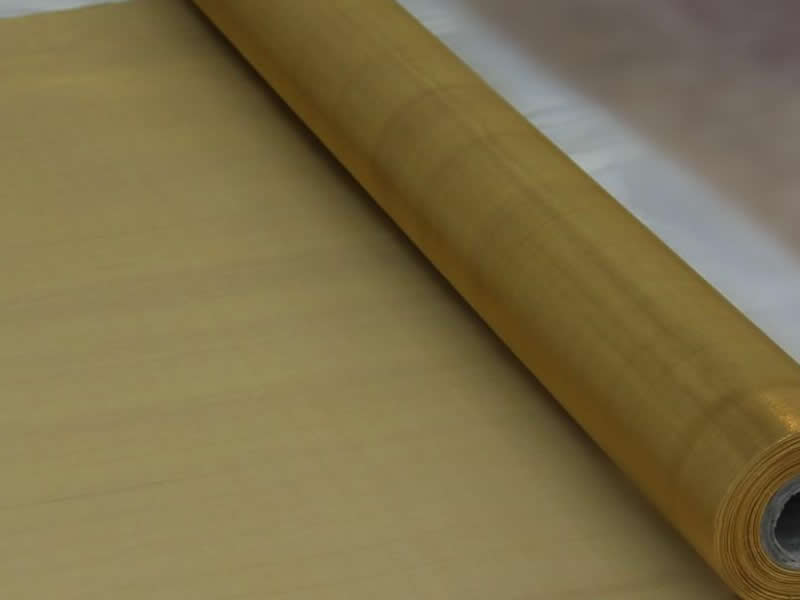

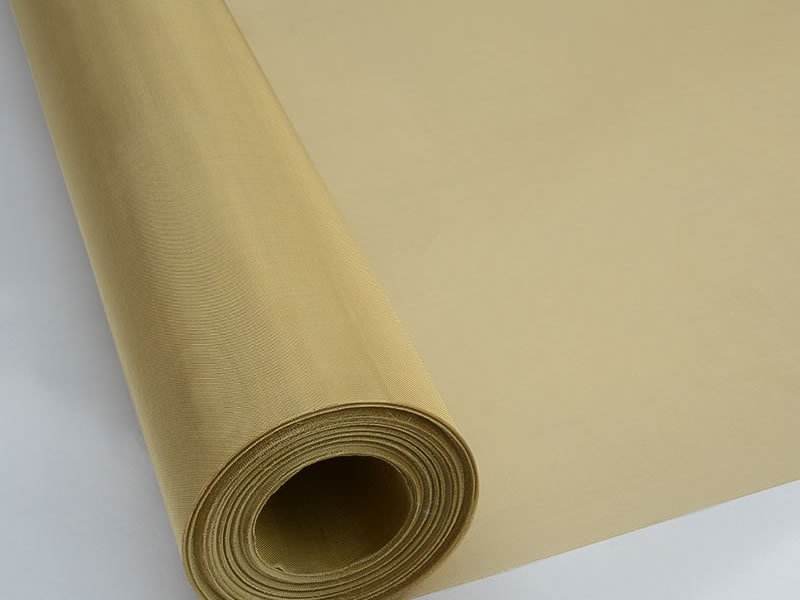

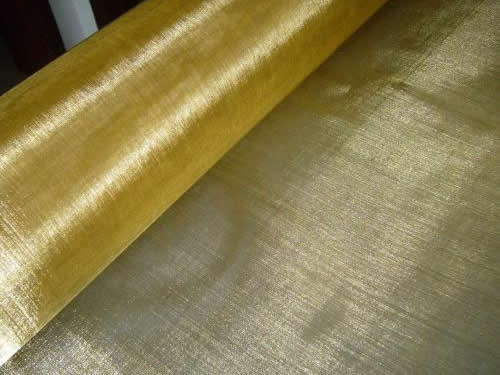

Material: 65 Brass (65% copper + 35% zinc), 75 Brass (75% copper + 25% zinc) , 80 Brass (80% copper + 20% zinc)
Woven pattern: Plain weave, twill weave, dutch weave
Application: It is widely used in sieving and filtering of granule, powder, porcelain, clay, glass, liquid and gas, also use in chinaware printing and decoration, with the characteristic of wear-resisting, corrosion-resisting, acid-resisting, alkali-resisting, lower electricity and temperature conductivity.
Mesh | Wire Diameter | Opening | Percentage Opean Area | |
inch | mm | mm | % | |
2 | 0.800 | 2.030 | 10.67 | 70 |
2 | 0.072 | 1.800 | 10.90 | 73 |
2 | 0.063 | 1.600 | 11.10 | 76 |
3 | 0.063 | 1.600 | 6.87 | 65 |
4 | 0.047 | 1.194 | 5.16 | 66 |
5 | 0.035 | 0.910 | 4.17 | 67 |
6 | 0.032 | 0.800 | 3.43 | 66 |
6 | 0.028 | 0.711 | 3.52 | 69 |
8 | 0.028 | 0.711 | 2.46 | 60 |
8 | 0.024 | 0.610 | 2.57 | 65 |
8 | 0.022 | 0.559 | 2.62 | 68 |
10 | 0.025 | 0.635 | 1.90 | 56 |
10 | 0.022 | 0.559 | 1.98 | 61 |
10 | 0.020 | 0.508 | 2.03 | 64 |
12 | 0.023 | 0.584 | 1.47 | 52 |
12 | 0.018 | 0.457 | 1.66 | 61 |
14 | 0.020 | 0.500 | 1.31 | 52 |
14 | 0.018 | 0.457 | 1.36 | 56 |
14 | 0.016 | 0.417 | 1.40 | 59 |
16 | 0.018 | 0.457 | 1.12 | 50 |
16 | 0.014 | 0.345 | 1.24 | 61 |
16 | 0.012 | 0.315 | 1.27 | 64 |
18 | 0.018 | 0.45 | 0.96 | 46 |
18 | 0.017 | 0.432 | 0.97 | 48 |
18 | 0.012 | 0.315 | 1.10 | 60 |
20 | 0.016 | 0.407 | 0.86 | 46 |
20 | 0.012 | 0.315 | 0.96 | 56 |
20 | 0.011 | 0.247 | 0.88 | 61 |
22 | 0.012 | 0.315 | 0.84 | 53 |
24 | 0.012 | 0.315 | 0.74 | 49 |
26 | 0.012 | 0.295 | 0.68 | 49 |
28 | 0.012 | 0.295 | 0.61 | 45 |
30 | 0.012 | 0.305 | 0.53 | 40 |
30 | 0.011 | 0.247 | 0.57 | 49 |
30 | 0.009 | 0.234 | 0.61 | 52 |
32 | 0.010 | 0.254 | 0.54 | 46 |
34 | 0.009 | 0.234 | 0.51 | 47 |
36 | 0.009 | 0.234 | 0.47 | 45 |
38 | 0.008 | 0.213 | 0.46 | 46 |
40 | 0.010 | 0.254 | 0.38 | 36 |
40 | 0.008 | 0.193 | 0.44 | 48 |
40 | 0.006 | 0.152 | 0.46 | 58 |
42 | 0.008 | 0.193 | 0.41 | 46 |
44 | 0.007 | 0.173 | 0.40 | 49 |
46 | 0.007 | 0.173 | 0.38 | 47 |
48 | 0.007 | 0.173 | 0.38 | 47 |
50 | 0.009 | 0.230 | 0.28 | 30 |
50 | 0.007 | 0.173 | 0.34 | 43 |
50 | 0.005 | 0.132 | 0.38 | 55 |
60x50 | 0.008 | 0.193 | ||
60x50 | 0.007 | 0.173 | ||
60 | 0.008 | 0.190 | 0.23 | 30 |
60 | 0.007 | 0.173 | 0.25 | 35 |
60 | 0.005 | 0.122 | 1.30 | 83 |
70 | 0.005 | 0.132 | 0.23 | 40 |
70 | 0.004 | 0.112 | 0.25 | 48 |
80 | 0.006 | 0.140 | 0.18 | 31 |
80 | 0.005 | 0.122 | 0.20 | 38 |
80 | 0.004 | 0.102 | 0.22 | 46 |
90 | 0.005 | 0.112 | 0.17 | 36 |
90 | 0.004 | 0.091 | 0.19 | 46 |
100 | 0.005 | 0.114 | 0.14 | 30 |
100 | 0.004 | 0.102 | 0.15 | 36 |
100 | 0.004 | 0.091 | 0.16 | 41 |
120X108 | 0.004 | 0.091 | ||
120 | 0.003 | 0.081 | 0.13 | 38 |
120 | 0.003 | 0.071 | 0.14 | 44 |
140 | 0.003 | 0.071 | 0.11 | 37 |
140 | 0.002 | 0.061 | 0.12 | 44 |
150 | 0.002 | 0.061 | 0.11 | 41 |
160 | 0.002 | 0.061 | 0.10 | 38 |
180 | 0.002 | 0.061 | 0.08 | 32 |
180 | 0.002 | 0.051 | 0.09 | 41 |
200 | 0.002 | 0.051 | 0.08 | 36 |

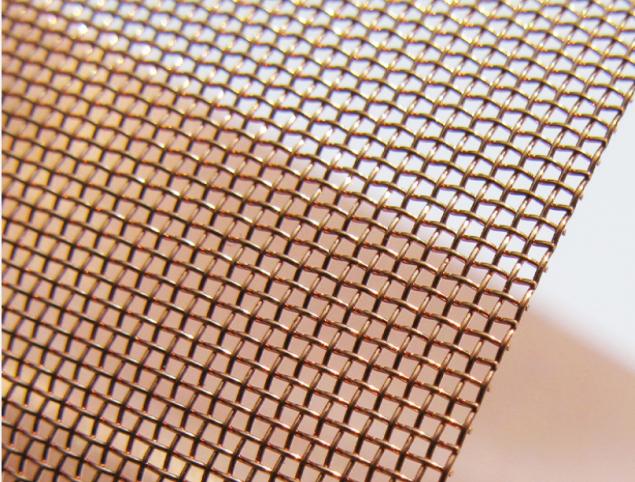

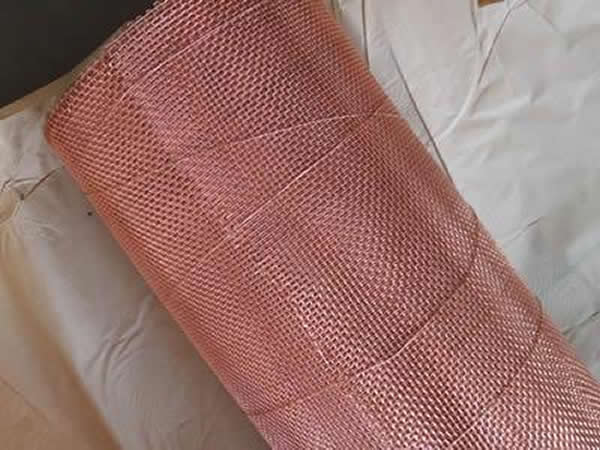

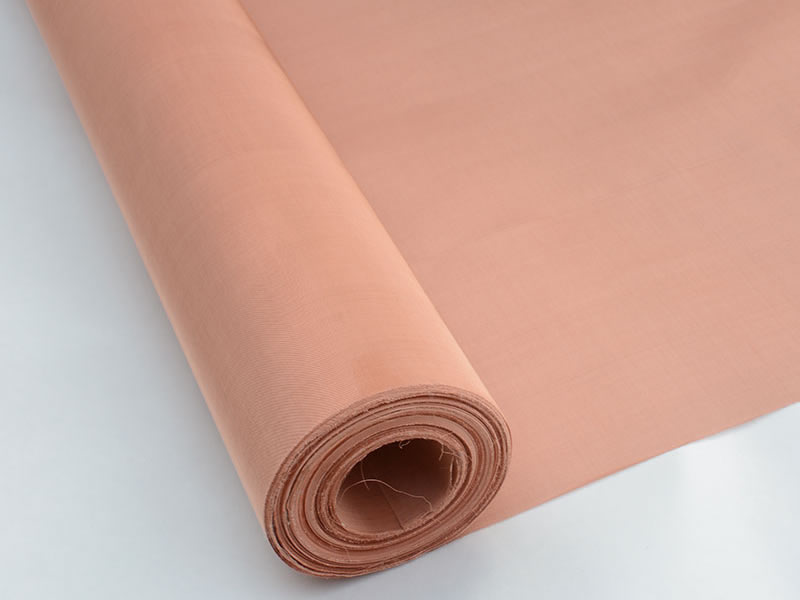

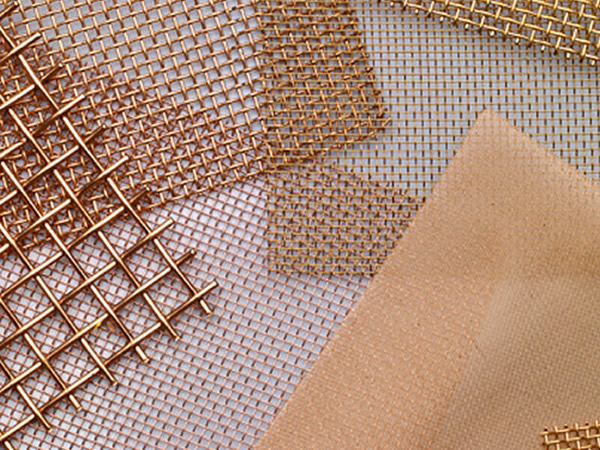

Material: Pure copper
Woven pattern: Plain weave, twill weave, dutch weave
Application: It is widely used as decorative mesh of house facade, wall, ceiling, lamp, cabinet, becuase of its smooth surface and bright color; it is used as sieving and filtering in metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food industry with the characteristic of wear-resisting, corrosion-resisting, acid-resisting, alkali-resisting, lower electricity and temperature conductivity.
Mesh | Wire Diameter | Opening | Percentage Opean Area | |
inch | mm | mm | % | |
2 | 0.800 | 2.030 | 10.67 | 70 |
2 | 0.072 | 1.800 | 10.90 | 73 |
2 | 0.063 | 1.600 | 11.10 | 76 |
3 | 0.063 | 1.600 | 6.87 | 65 |
4 | 0.047 | 1.194 | 5.16 | 66 |
5 | 0.035 | 0.910 | 4.17 | 67 |
6 | 0.032 | 0.800 | 3.43 | 66 |
6 | 0.028 | 0.711 | 3.52 | 69 |
8 | 0.028 | 0.711 | 2.46 | 60 |
8 | 0.024 | 0.610 | 2.57 | 65 |
8 | 0.022 | 0.559 | 2.62 | 68 |
10 | 0.025 | 0.635 | 1.90 | 56 |
10 | 0.022 | 0.559 | 1.98 | 61 |
10 | 0.020 | 0.508 | 2.03 | 64 |
12 | 0.023 | 0.584 | 1.47 | 52 |
12 | 0.018 | 0.457 | 1.66 | 61 |
14 | 0.020 | 0.500 | 1.31 | 52 |
14 | 0.018 | 0.457 | 1.36 | 56 |
14 | 0.016 | 0.417 | 1.40 | 59 |
16 | 0.018 | 0.457 | 1.12 | 50 |
16 | 0.014 | 0.345 | 1.24 | 61 |
16 | 0.012 | 0.315 | 1.27 | 64 |
18 | 0.018 | 0.45 | 0.96 | 46 |
18 | 0.017 | 0.432 | 0.97 | 48 |
18 | 0.012 | 0.315 | 1.10 | 60 |
20 | 0.016 | 0.407 | 0.86 | 46 |
20 | 0.012 | 0.315 | 0.96 | 56 |
20 | 0.011 | 0.247 | 0.88 | 61 |
22 | 0.012 | 0.315 | 0.84 | 53 |
24 | 0.012 | 0.315 | 0.74 | 49 |
26 | 0.012 | 0.295 | 0.68 | 49 |
28 | 0.012 | 0.295 | 0.61 | 45 |
30 | 0.012 | 0.305 | 0.53 | 40 |
30 | 0.011 | 0.247 | 0.57 | 49 |
30 | 0.009 | 0.234 | 0.61 | 52 |
32 | 0.010 | 0.254 | 0.54 | 46 |
34 | 0.009 | 0.234 | 0.51 | 47 |
36 | 0.009 | 0.234 | 0.47 | 45 |
38 | 0.008 | 0.213 | 0.46 | 46 |
40 | 0.010 | 0.254 | 0.38 | 36 |
40 | 0.008 | 0.193 | 0.44 | 48 |
40 | 0.006 | 0.152 | 0.46 | 58 |
42 | 0.008 | 0.193 | 0.41 | 46 |
44 | 0.007 | 0.173 | 0.40 | 49 |
46 | 0.007 | 0.173 | 0.38 | 47 |
48 | 0.007 | 0.173 | 0.38 | 47 |
50 | 0.009 | 0.230 | 0.28 | 30 |
50 | 0.007 | 0.173 | 0.34 | 43 |
50 | 0.005 | 0.132 | 0.38 | 55 |
60x50 | 0.008 | 0.193 | ||
60x50 | 0.007 | 0.173 | ||
60 | 0.008 | 0.190 | 0.23 | 30 |
60 | 0.007 | 0.173 | 0.25 | 35 |
60 | 0.005 | 0.122 | 1.30 | 83 |
70 | 0.005 | 0.132 | 0.23 | 40 |
70 | 0.004 | 0.112 | 0.25 | 48 |
80 | 0.006 | 0.140 | 0.18 | 31 |
80 | 0.005 | 0.122 | 0.20 | 38 |
80 | 0.004 | 0.102 | 0.22 | 46 |
90 | 0.005 | 0.112 | 0.17 | 36 |
90 | 0.004 | 0.091 | 0.19 | 46 |
100 | 0.005 | 0.114 | 0.14 | 30 |
100 | 0.004 | 0.102 | 0.15 | 36 |
100 | 0.004 | 0.091 | 0.16 | 41 |
120X108 | 0.004 | 0.091 | ||
120 | 0.003 | 0.081 | 0.13 | 38 |
120 | 0.003 | 0.071 | 0.14 | 44 |
140 | 0.003 | 0.071 | 0.11 | 37 |
140 | 0.002 | 0.061 | 0.12 | 44 |
150 | 0.002 | 0.061 | 0.11 | 41 |
160 | 0.002 | 0.061 | 0.10 | 38 |
180 | 0.002 | 0.061 | 0.08 | 32 |
180 | 0.002 | 0.051 | 0.09 | 41 |
200 | 0.002 | 0.051 | 0.08 | 36 |

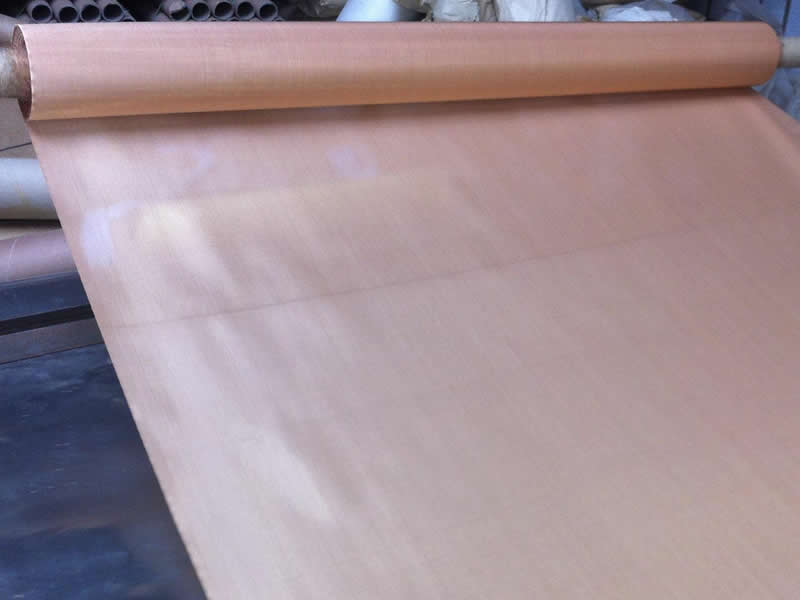

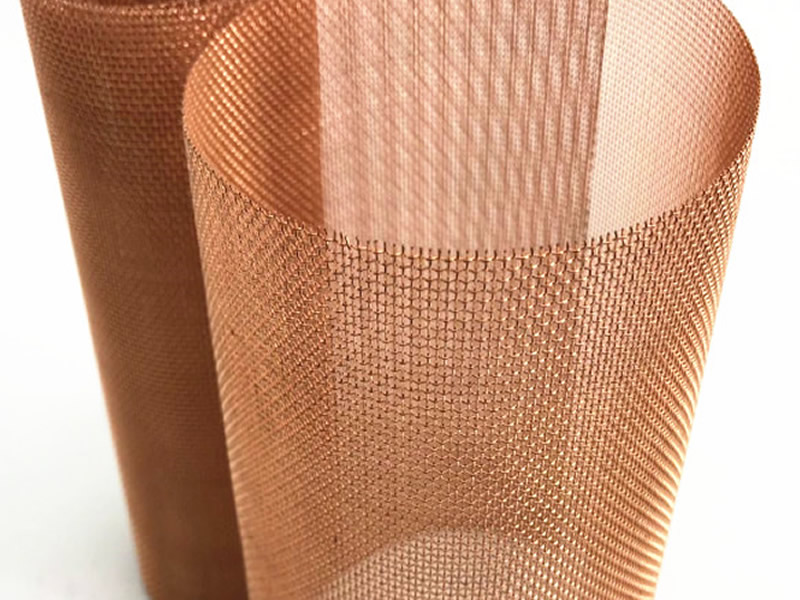

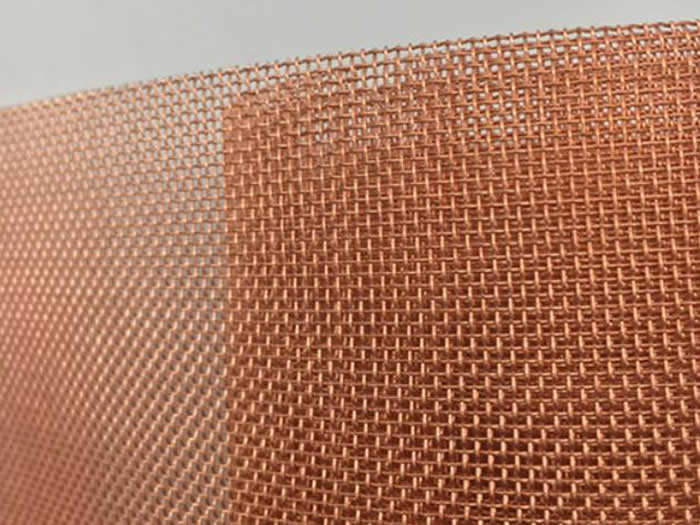

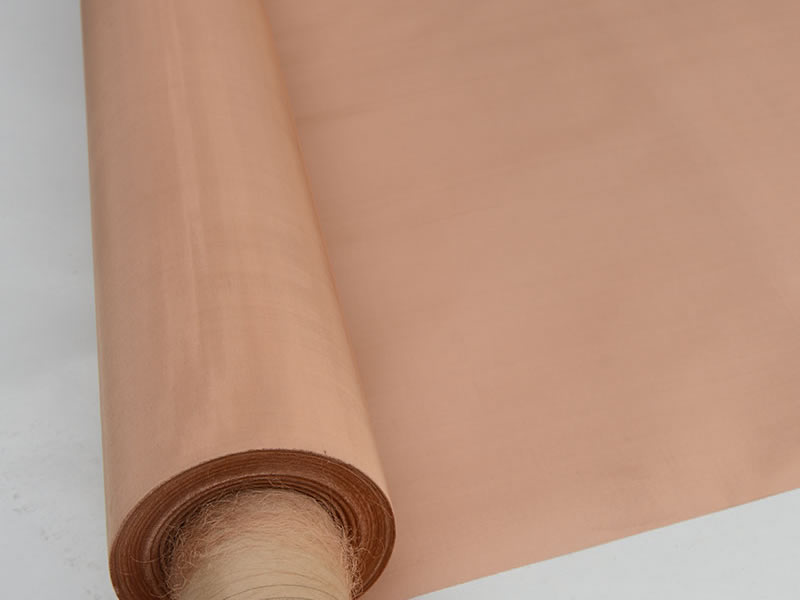

Phosphor bronze is an alloy of tin, phosphor and copper. This alloy has good ductility, high toughness, high strength.
Woven pattern: Plain weave, twill weave, dutch weave
Application: it is widely used in sieving and filtering of granule, powder, porcelain, clay, glass, liquid and gas, also use as filter in pharmacy, food, industry, chemical industry, paper making and metallurgy or screen, with the characteristic of wear-resisting, corrosion-resisting.
Grade | Chemical Composition (%) | |||||
Cu | Sn | P | Pb | Fe | Zn | |
C5111 | rem | 3.5-4.5 | 0.03-0.35 | <0.05 | <0.10 | <0.30 |
C5102 | rem | 4.2-5.5 | 0.03-0.35 | <0.05 | <0.10 | <0.30 |
C5191 | rem | 5.5-7.0 | 0.03-0.35 | <0.05 | <0.10 | <0.30 |
C5212 | rem | 7.0-9.0 | 0.03-0.35 | <0.05 | <0.10 | <0.30 |
