Iron & Galvanized Wire Mesh

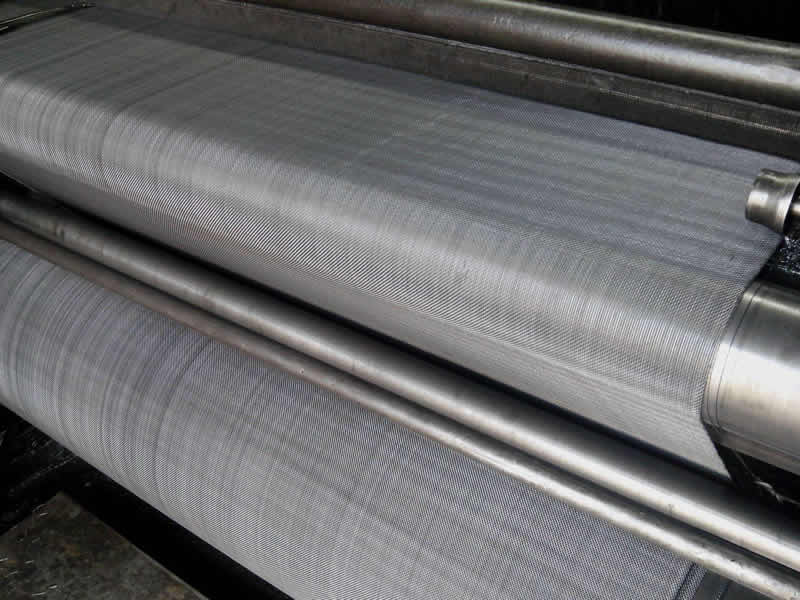

BLACK WIRE MESH
Material: iron wire
Woven pattern: Plain weave, Twill weave, Herringbone weave, Dutch weave
Application: Usd for filters in rubber industry, plastic industry and grain industry.
| Mesh | Wire diameter (mm) | Mesh | Wire diameter (mm) | Mesh | Wire diameter (mm) |
| 12 | 0.35 | 24 | 0.35 | 12X64 | 0.60X0.40 |
| 12 | 0.45 | 30 | 0.30 | 14X88 | 0.50X0.33 |
| 14 | 0.45 | 30 | 0.29 | 24X110 | 0.35X0.25 |
| 16 | 0.45 | 40 | 0.25 | 30X150 | 0.24X0.178 |
| 18 | 0.45 | 50 | 0.23 | ||
| 20 | 0.40 | 60 | 0.17 | ||
| 20 | 0.45 | 80 | 0.13 |

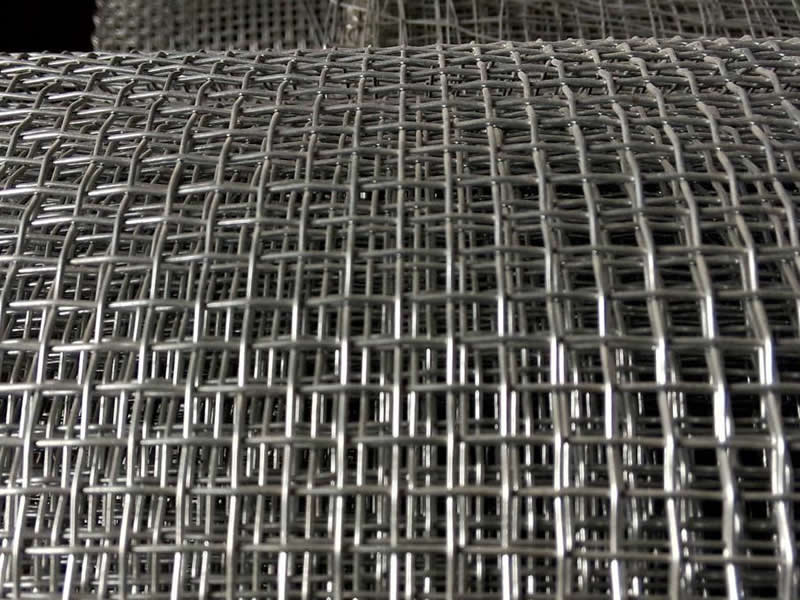

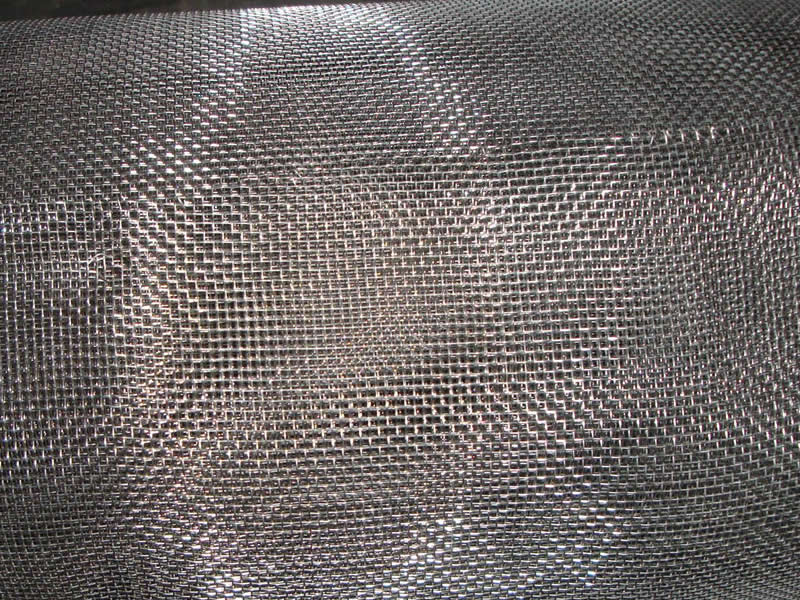

GALVANIZED WIRE MESH
Material: iron wire, galvanized wire, hot dipped galvanized wire
Electro galvanized before woven
Electro galvanized after woven
Hot dipped galvanized before woven
Hot dipped galavnized after woven
Blue finish galvanized after woven
Application: Use for window screen, filtering liquid and gas, sieving grain.
| Mesh | Wire Diameter (mm) | Opening (mm) |
| 3 | 1.60 | 6.87 |
| 4 | 1.20 | 5.15 |
| 5 | 0.95 | 4.13 |
| 6 | 0.80 | 3.43 |
| 8 | 0.70 | 2.43 |
| 10 | 0.60 | 1.94 |
| 12 | 0.55 | 1.56 |
| 14 | 0.41 | 1.40 |
| 16 | 0.35 | 1.24 |
| 18 | 0.30 | 1.11 |
| 20 | 0.27 | 1.00 |
| 22 | 0.25 | 0.90 |
| 24 | 0.23 | 0.83 |
| 26 | 0.20 | 0.78 |
| 28 | 0.18 | 0.73 |
| 30 | 0.15 | 0.70 |
| 35 | 0.14 | 0.59 |
| 40 | 0.14 | 0.50 |
| 50 | 0.12 | 0.39 |
| 60 | 0.12 | 0.30 |
